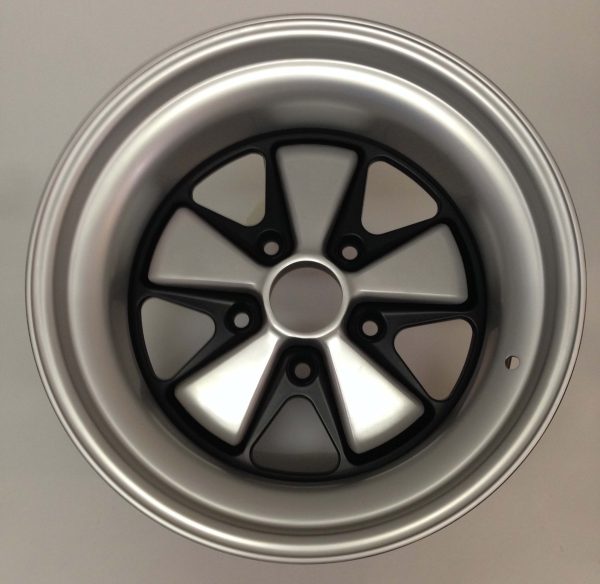

Forged RSR-style 17″ Wheels – Custom Offset
€758,67
Forged RSR-style wheels in 17 inch and 7-12J offsets between -/-50 and +/+70mm.
RSR finish only.
Delivery time: around 4 weeks.
Select your offset for the wheels within the following parameters:
7″ ET between 0 mm and +/+ 50 mm
8″ ET between -/-20 mm and +/+ 60 mm
9″ ET between -/-30 mm and +/+ 70 mm
10″ ET between -/- 45 mm and +/+ 70 mm
11″ ET between -/- 50 mm and +/+ 70 mm
12″ ET between -/- 50 mm and +/+ 70 mm
Incorrect values will lead to delays in your order processing.
Available on backorder
Description
Forged RSR-style wheels available in a range of custom offsets between -/-50 and +/+70 and widths between 7J and 12J. Especially manufactured for TwinSpark by European Supplier. Available only in RSR finish as you would want it no other way.
These gorgeous wheels have been tested in earnest a.o. during the 2014 BergMeisteR Tour. Not only do they look the parts they are strong and a good alternative to Unobtanium wheels of most of these sizes.
The weight of the wheels ranges between 5,5 and 8,7 kilo’s depending on the wheel size.
The Standard Wheel Offset assumes an early, non-Turbo chassis up to and including the 3.2 Carrera. The Wheel Width fits according to Factory Original options available in period. In below schematic you should read “C” as the inside of the wheel. If you are running a non-OEM body or a nonstandard chassis for your car body you will need to determine the Offset, or in German ET (Einpresstiefe) before ordering the wheels. Offset is calculated as (A/2+B)-C, resulting in a positive or negative millimeter denominated value. If the value is negative then the wheel center sits closer to the car body than the wheel center line. If the value is positive, then the wheel center sits further from the car body than the wheel center line.
Additional information
Weight | 9 kg |
---|---|
Wheel Width, Standard Offset | 10J ET -/- 15mm, 11J ET -/- 27mm, 12J ET -/- 40, 7J ET +/+ 23mm, 8J ET +/+ 10mm, 9J ET -/- 3mm |
Custom Offset instead of Standard | ET -/-10mm, ET -/-15mm, ET -/-20mm, ET -/-25mm, ET -/-30mm, ET -/-35mm, ET -/-40mm, ET -/-45mm, ET -/-50mm, ET -/-5mm, ET +/+10mm, ET +/+15mm, ET +/+25mm, ET +/+30mm, ET +/+35mm, ET +/+40mm, ET +/+45mm, ET +/+55mm, ET +/+5mm, ET +/+60mm, ET +/+65mm, ET +/+70mm, ET+/+20mm, ET+/+50mm, Standard |
